- Analog to Digital Workflow – supports clinicians getting started with digital workflows
- Scannable Verification Jig – preserves the precise spatial relationship of multi-unit abutments, particularly beneficial for restorations with ti-bases.

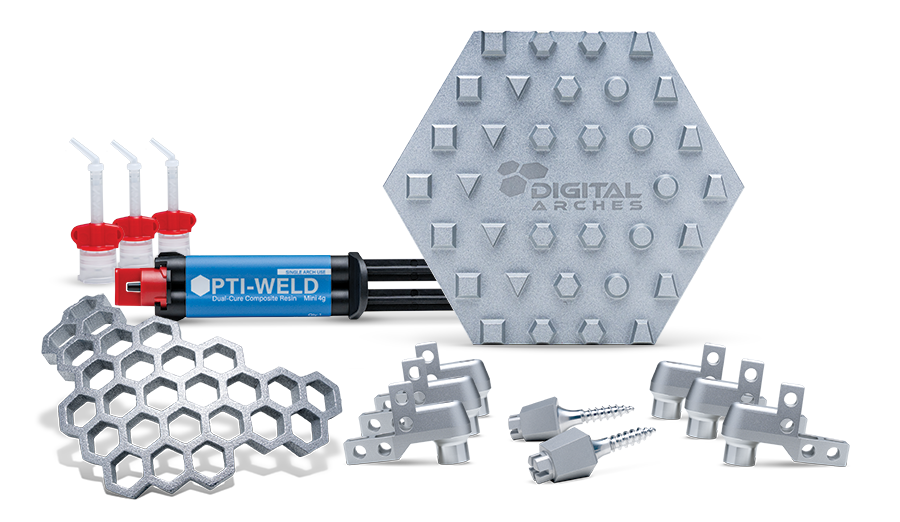

OPTISPLINT® Grammetry System
OPTISPLINT® features a unique, honeycomb-style frame that allows individual scan bodies to be luted intraorally into a single stable unit. Once connected, the assembly functions as a verification jig that is scanned extraorally or sent to the lab for cast verification.

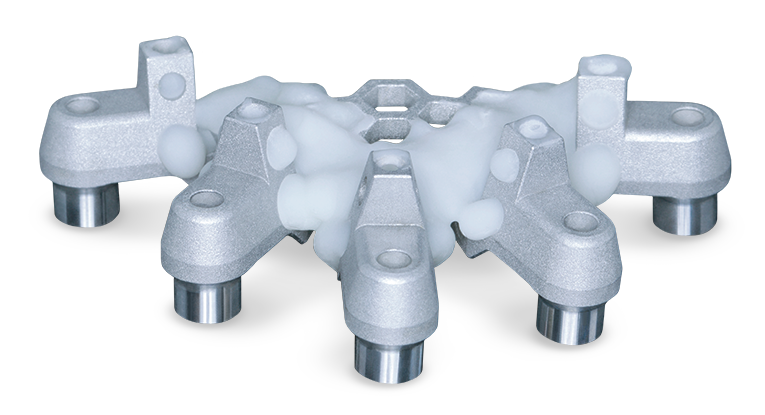

A Simpler Approach to Full-Arch Implant Records
This flexible workflow supports both guided and freehand surgeries and aligns surgical, provisional, and final restorative phases with a single, consistent digital reference. The result is improved prosthetic fit, simplified communication with the lab, and greater confidence at every stage of the full-arch process.
- Predictable precision captures accurate multi-unit abutment relationships to support passive-fit provisional and final prostheses.
- Digital workflow flexibility compatible with all intraoral scanners — no photogrammetry required.
- Streamlined chairside process reduces record-taking complexity while supporting efficient All-on-X workflows — working in conjunction with ARCHTRACER™ fiducial marker system to preserve consistency from implant placement through final prosthesis fabrication.
- Glidewell-backed integration supported by Glidewell’s full-arch clinical protocols, lab validation and technical expertise.

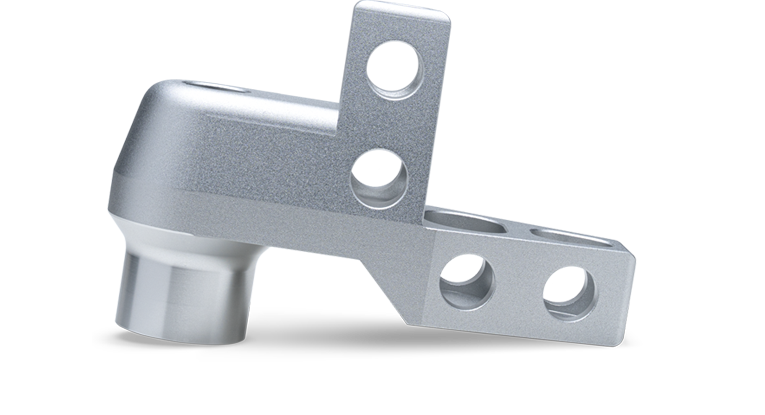

OPTISPLINT® Digital Workflow
Glidewell is proud to partner with Digital Arches to offer OPTISPLINT® as means of simplifying the digital workflow and achieving a passive, high-precision fit for your final full-arch restoration.
Download the OPTISPLINT® surgical workflow here or the OPTISPLINT® restorative workflow here.

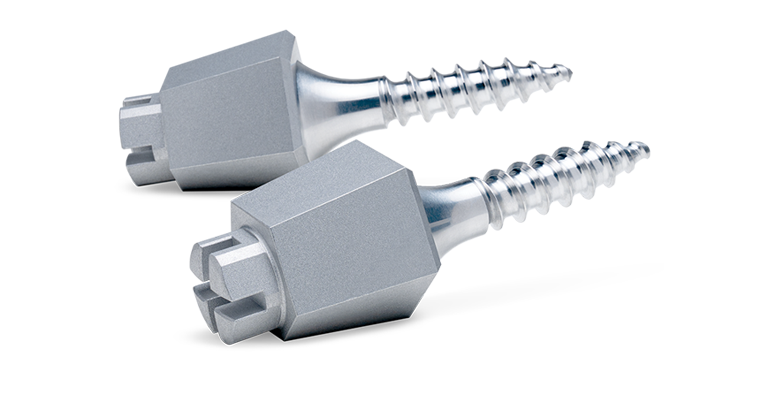

ARCHTRACER™ Fiducial Marker
The ARCHTRACER™ fiducial marker solution supports accurate alignment between surgical and restorative records in digital full arch workflows.
When used alongside OPTISPLINT® or photogrammetry, ARCHTRACER™ helps establish a consistent reference from implant placement through final restoration. Call 866 861 7955 to order ARCHTRACER™ directly through Glidewell.
Clinical Studies

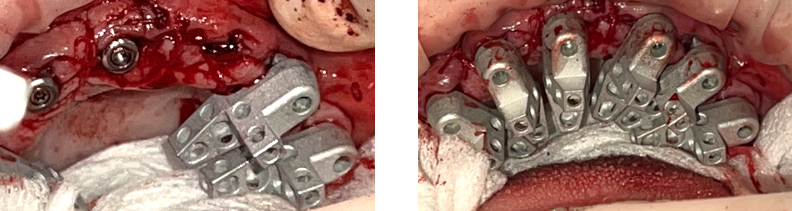

Scan bodies are placed independently on multi-unit abutments with their wing-like projections facing toward one another. The scan bodies should also be placed as close as possible, without being in direct contact.
The OPTISPLINT® frame is carried intraorally via the frame carrier (left). The OPTISPLINT® frame is then luted to the scan bodies via acrylic or composite material (right). It is important that no pickup material is placed on the scan region of the OPTISPLINT® scan body, as this will impact the accuracy of the implant record.
Intraoral scanners can be utilized to capture implant positioning. Scanning is simplified as data is recorded along a similar plane, limiting inaccuracy caused by the “Z-effect”. The OPTISPLINT® structure can be removed intraorally and scanned extraorally with an intraoral or desktop scanner.
After the implants are placed and positioning is recorded, a postoperative scan of the fiducial marker with the scannable healing caps is made. ARCHTRACER™ fiducial markers (Digital Arches) can be easily utilized to merge data sets.
Once the OPTISPLINT® structure is connected together, it is removed from the mouth. Multi-unit analogs can be placed into the structure and poured in dental stone, creating a master model. This allows clinicians to verify prosthetic passivity prior to delivery.

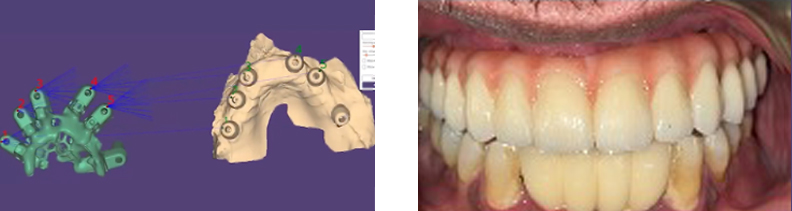

After all the data is recorded, the information should then be sent to the lab. There, the information is imported into CAD software. Files are then aligned to digitally design the All-on-X prosthesis. The lab merges all the files, designs the prosthesis, and fabricates the immediate or final fixed prosthesis.
A 2D photograph or a 3D facial scan can be recorded to help aid digital lab technicians in the fabrication of the prosthesis.
- Placement of Individual Scan Bodies
- Connecting the Honeycomb Frame

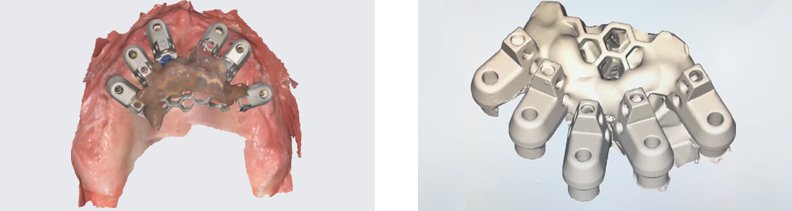

- Scanning the Splinted Structure
- Recording Tooth Positioning
- Fabricating the Verification Jig
- Merging of Data
- Facial Record
Systems like OPTISPLINT enable clinicians to achieve high-accuracy digital impressions using standard intraoral scanning technology. The use of connected scan base systems allows continuous data acquisition, reducing stitching errors and improving accuracy.
Indications
OPTISPLINT® Kits are intended for single patient use only.
Compatibility
1.25 mm in Hex Compatability:
- Nobel Biocare (also Glidewell HT)
1.20 mm / 0.050 in Hex Compatibility:
- Hiossen / Osstem
- Megagen Biomet 3i
1.27 mm / 0.050 in Hex Compatibility:
- BioHorizons
- Astra
1.6 mm Threaded Screw Compatibility:
- MIS
- URIS (TruAbutment)
- Ritter
Kit Includes
STARTER Package $695:
1 OPTISPLINT® Kit with 4, 5, or 6 scan bodies 1 OPTIWELD(ER) Mixing Gun for OPTIWELD 1 Extraoral SCANPLATE 1 OPTIWELD Mini 4g Dual-Cure Composite Material 1 OPTISPLINT® Frame Clipper 10 LONG SCREWS for direct to MUA prosthetics
Refill Kits
- 4 Sites $295
- 5 sites $375
- 6 sites $445
ARCHTRACER™
- Starter Package $795
