Design Smiles in Harmony with the Patient’s Face

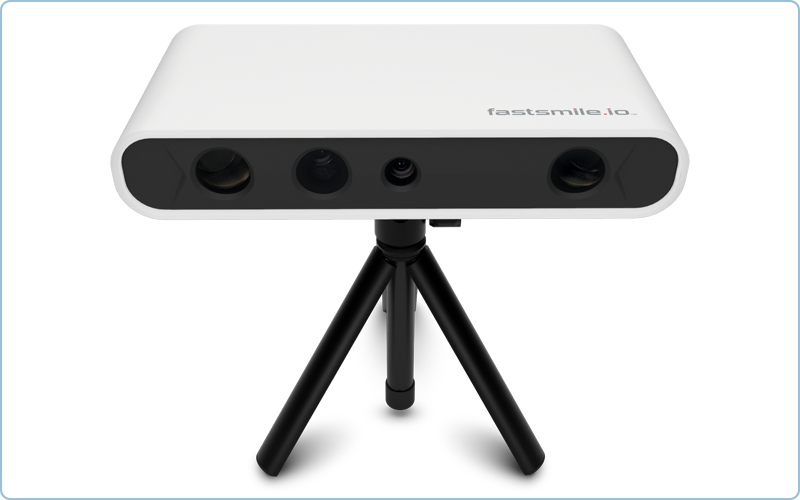

The fastsmile.io™ 3D Facial Scanner captures precise, full-face 3D scans, giving you the context to plan esthetic restorations with confidence — integrated seamlessly into Glidewell digital workflows.
Streamline Your Production
The fastsmile.io™fastsmile.io™ makes friction-free esthetic planning a reality. Capture a patient’s full facial anatomy to:
- Plan restorations in context — veneers, crowns, and full-arch work that match facial symmetry.
- Reduce chair time and remakes — simulate outcomes and gain patient approval before starting.
- Collaborate seamlessly with the lab — integrated Glidewell workflow eliminates manual back-and-forth.
What Clinicians Are Saying
“The fastsmile.io has been a great addition for esthetic planning. Having a full 3D facial scan makes it easier to visualize how the restoration will look in harmony with the patient’s face—not just their smile.”
Taylor Manalili, DDS
Irvine, CA

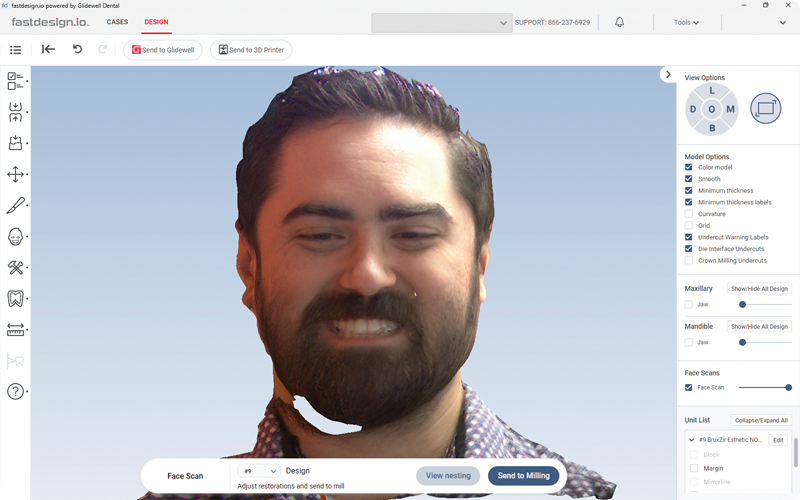

- Face scan
- Scan Align

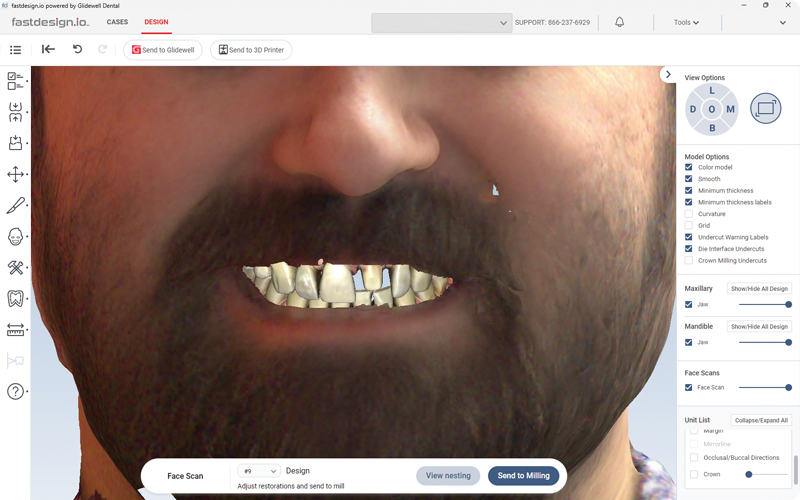

- Scan Align (Close Up)

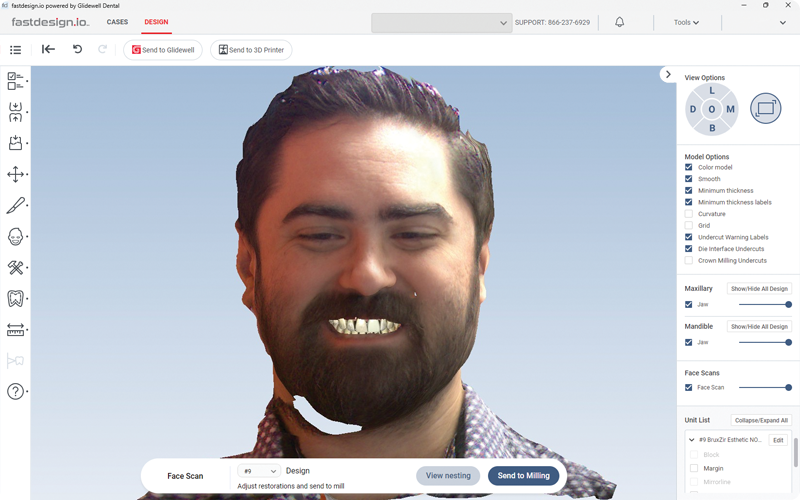

- Restoration Proposal

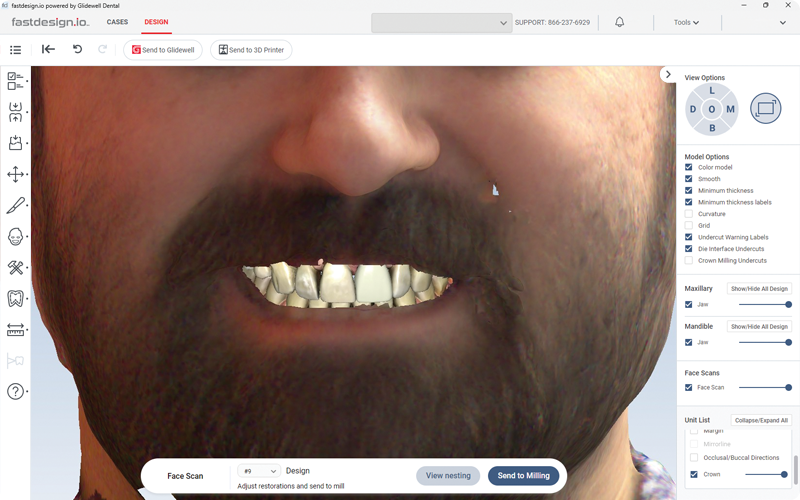

- Restoration Proposal (Close-Up)
Clinical Use Cases
fastsmile.io™ supports smarter, more precise dentistry:
- Patient Records: Capture accurate facial anatomy to enhance clinical documentation.
- Esthetic Planning: Visualize crowns, veneers, implant prosthesis, and more in context with the patient’s smile and facial features.
- Lab Collaboration: Communicate clearly with the lab to guide try-ins, adjustments, and final restorations.
Friction-Free Workflow with Glidewell Integration
Connect directly to Glidewell’s cloud platform to:
- Review data and gain patient approvals early.
- Execute chairside workflows efficiently.
- Deliver predictable functional and esthetic results with minimal back-and-forth.
Technical Specifications
SCANNER SPECIFICATIONS
Model
FS-1-2025
Power and IO
Thunderbolt 4 USB-C for power and data
Operating Temperature
104° F maximum operating temperature
Dimensions (L x W x H)
240 x 115 x 44 mm
Weight
< 1.8 lbs
Field of View
200 x 110 mm
Output Format
PLY, STL, OBJ, JPG
RECOMMENDED PC SPECIFICATIONS
CPU
Intel® Core™ i5 minimum
CPU Speed
2.7 GHz minimum
GPU
NVIDIA GTX 1660 6 GB minimum
Memory
32 GB RAM minimum
Hard Disk Storage
500 GB NVMe minimum
PC Connections
1x Thunderbolt 4 USB-C and 1x USB-A 3.0 port
Operating System
Windows 10 (64-bit) or later
Warranty
12 months manufacturer’s warranty included
Extended warranty options available
RESOURCES
Product Brochure
